Datalink

Based on more than 15 years of datalink system and terminal development experience and know-hows, Hanwha Systems secured advanced technologies for T4 (274Mbps) CDL(Common Datalink) and Link-16/22 tactical datalink systems and terminals.
Hanwha Systems completed KVMF system development(ground tactical datalink) and JTDLS Basic Type and Completion Type development, thus successfully establishing Korea’s Link-K Network(Extended Weapon datalink).

Features

More than 15 years of Tactical datalink
system and terminal Development
know-hows
Secured advanced technologies for
designing T4(274Mbps) CDL and
Link-16/22 overseas tactical datalink
system and terminal development
Developed KVMF system, Korea’s
common datalink standard, and JTDLS
Basic & Completion Types. Built Korea’s
Link-K Network.

PRODUCTS

Tactical Datalink for
JTDLS Complete
System (Link-K)
Read more

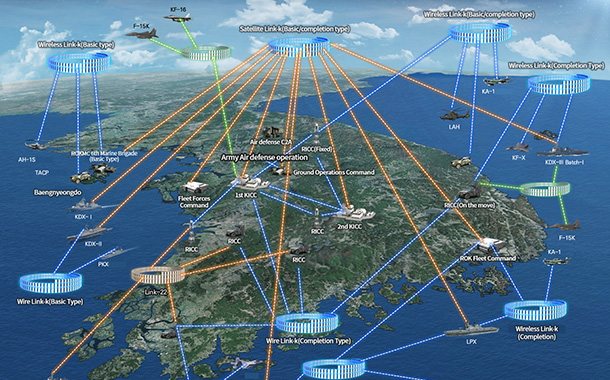

Tactical Datalink for JTDLS Complete System (Link-K)
High Speed Anti-Jamming TDL terminal is the common terminal for ground, naval air platforms, which is used for building Korea’s JTDLS Completion Type networks. All the functions of overseas MIDS-LVT terminal functions have been locally developed, allowing for processing Link-K messages.
This enable ROK Forces to independently conduct surveillance of land, sea and air space of the Korean Peninsula.
In addition, L-band radar operation frequency is to be shared to avoid the issue of unavailability of frequency bands, thus building JTDLS Completion Type networks without impacting inter-system Communication.
- TDL Terminal

  Development of CSMA based tactical datalink mobile terminal
- TDLS Applied Research

  Korea Type Tactical Datalink Transceiver Prototype
- JTDLS Basic Type Wireless Modem

  Development of modems to be mounted on JTDLS Basic Type System’s ground naval and air platforms to establish wireless networks
- JTDLS Basic Type Ground/ Naval DLP(Data Link Processor)

  Development of DLP optimized for JTDLS Basic Type’s ground, naval and air platforms
- High Speed Anti-Jamming TDL Terminal

  Development of air platform terminal applicable to JTDLS Completion Type and development of DPL transceiver operable on ground and naval platforms
Korea-Variable
Message Format
Read more

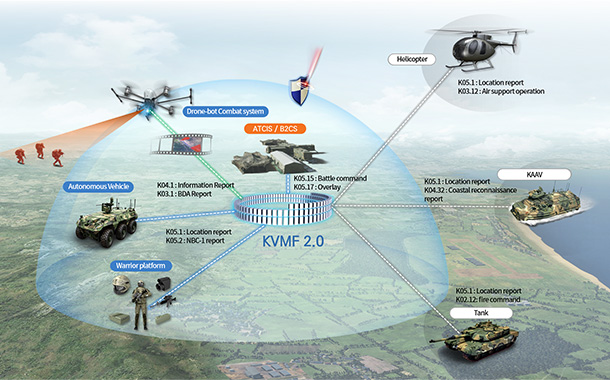

KVMF
(Korea-Variable Message Format)
KVMF terminals capable of transmitting battlefield situations and ISR data are installed on tank/armored vehicles or helicopters to support effective mission operations.
KVMF provides interfaces with ground tactical C4I systems and B2CS for integrated operations.
KVMF standard messages are utilized to share battlefield situations and implement command and control functions.

- One piece terminal that can be interfaced with various HW

- Provides battlefield situation awareness functions using KVMF

- Applies ruggedized hardware specifications(MIL-STD-810, MIL-STD-461) suitable for the operation of military vehicles
