Based on more than 15 years of datalink system and terminal development experience and know-hows, Hanwha Systems secured advanced technologies for T4 (274Mbps) CDL(Common Datalink) and Link-16/22 tactical datalink systems and terminals.
Hanwha Systems completed KVMF system development(ground tactical datalink) and JTDLS Basic Type and Completion Type development, thus successfully establishing Korea’s Link-K Network(Extended Weapon datalink).
- Features
-
-
More than 15 years of
Tactical datalink system
and terminal Development
know-hows -
Secured advanced
technologies for designing
T4(274Mbps) CDL and
Link-16/22 overseas tactical
datalink system and
terminal development -
Developed KVMF system,
Korea’s common datalink
standard, and JTDLS Basic
& Completion Types.
Built Korea’s Link-K
Network.
-
PRODUCTS
-

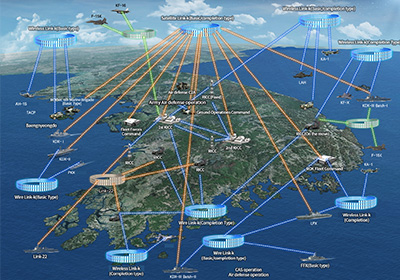

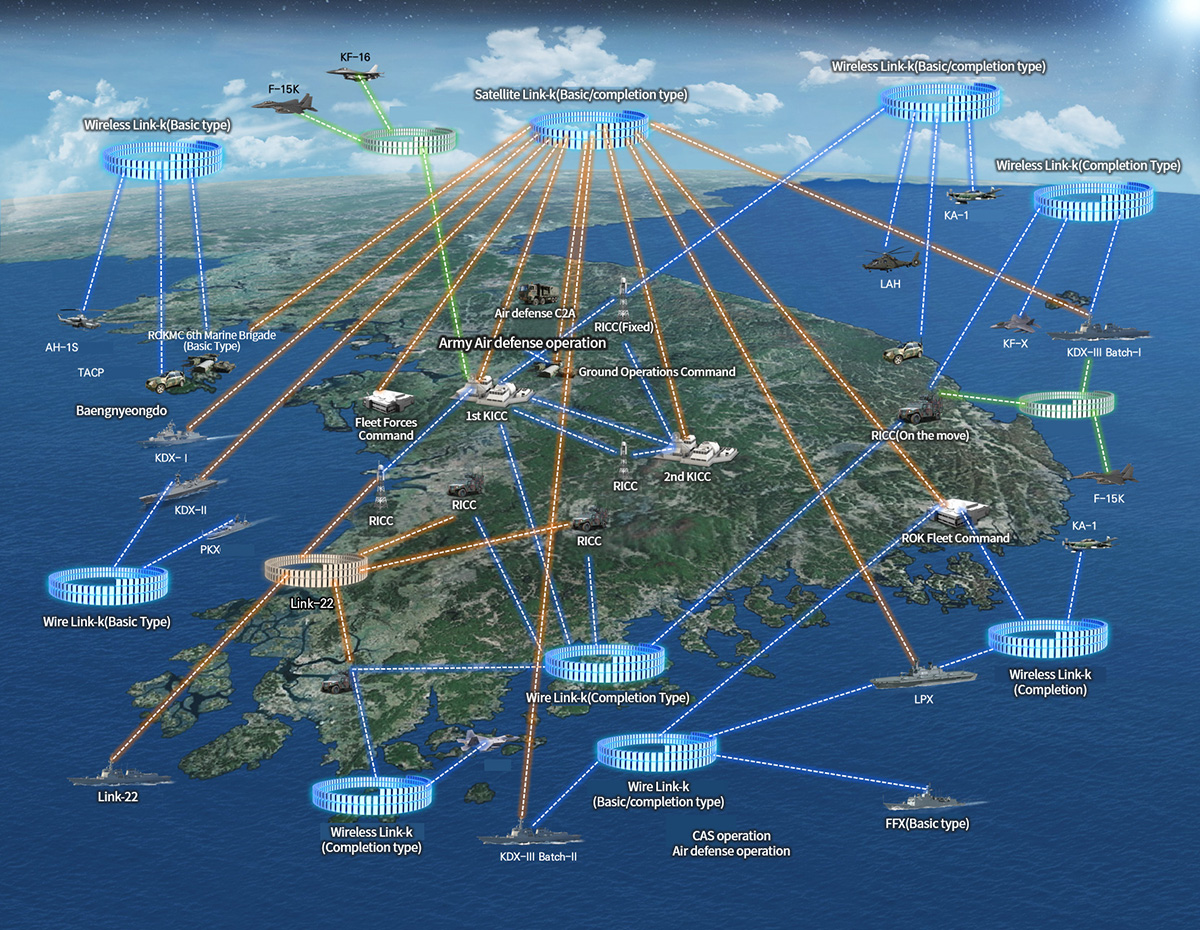

Tactical Datalink for JTDLS Complete System (Link-K)
High Speed Anti-Jamming TDL terminal is the common terminal for ground, naval air platforms, which is used for building Korea’s JTDLS Completion Type networks. All the functions of overseas MIDS-LVT terminal functions have been locally developed, allowing for processing Link-K messages.
This enable ROK Forces to independently conduct surveillance of land, sea and air space of the Korean Peninsula.
In addition, L-band radar operation frequency is to be shared to avoid the issue of unavailability of frequency bands, thus building JTDLS Completion Type networks without impacting inter-system Communication.-
- TDL Terminal
- Development of CSMA based tactical datalink mobile terminal
-
- TDLS Applied Research
- Korea Type Tactical Datalink Transceiver Prototype
-
- JTDLS Basic Type Wireless
Modem - Development of modems to be mounted on JTDLS Basic Type System’s ground naval and air platforms to establish wireless networks
- JTDLS Basic Type Wireless
-
- JTDLS Basic Type Ground/
Naval DLP
(Data Link Processor) - Development of DLP optimized for JTDLS Basic Type’s ground, naval and air platforms
- JTDLS Basic Type Ground/
-
- High Speed Anti-Jamming
TDL Terminal - Development of air platform terminal applicable to JTDLS Completion Type and development of DPL transceiver operable on ground and naval platforms
- High Speed Anti-Jamming
-
-
Korea-Variable
Read more

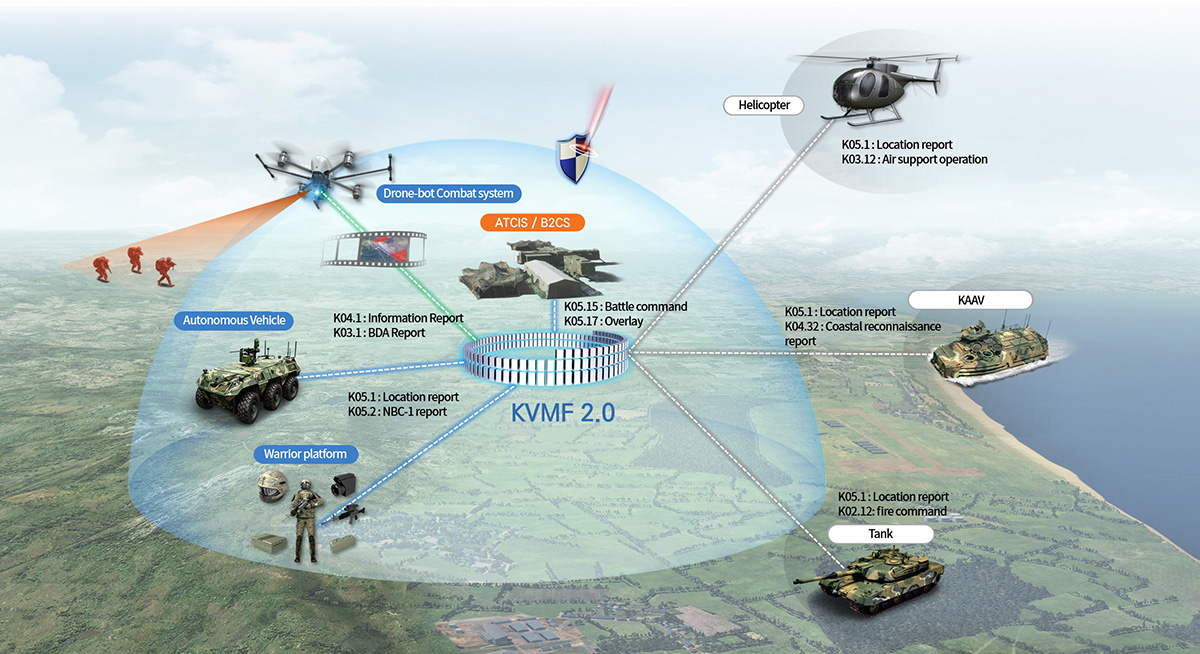

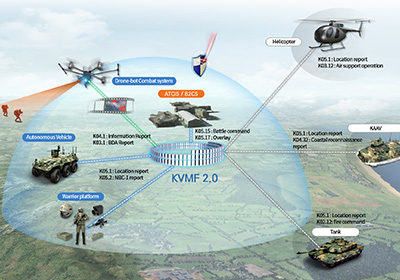

Message FormatKVMF(Korea-Variable Message Format)
KVMF terminals capable of transmitting battlefield situations and ISR data are installed on tank/armored vehicles or helicopters to support effective mission operations.
KVMF provides interfaces with ground tactical C4I systems and B2CS for integrated operations.
- KVMF standard messages are utilized to share battlefield situations and implement command and control functions.
-
- One piece terminal that can be interfaced with various HW
- Provides battlefield situation awareness functions using KVMF
- Applies ruggedized hardware specifications(MIL-STD-810, MIL-STD-461) suitable for the operation of military vehicles
