Smart Battleship

Hanwha Systems’ Smart Battleship is a next-generation smart warship built on a software-centric design, moving beyond conventional hardware-centric warship structures by integrating sensor, weapon, and command-and-control functions through software.
Through AI-based automation that integrates the Combat Management System (CMS), Engineering Control System (ECS), and Integrated Bridge System (IBS), it enables efficient mission execution with minimum crew and flexibly responds to diverse operational environments through the application of a modular mission bay.

Features
  • Software-Centric Design
    Ensures functional expansion and
    operational flexibility through
    software-centric design
  • System Integration & Automation
    Reduces crew requirements and
    improves operational efficiency
    through integrated automation
    of CMS, ECS, and IBS
  • Modular Design
    Maximizes operational capability
    and survivability through the
    embarkation of mission modules
    (containers), and shortens the
    construction schedule through
    integrated design of major
    systems/compartments

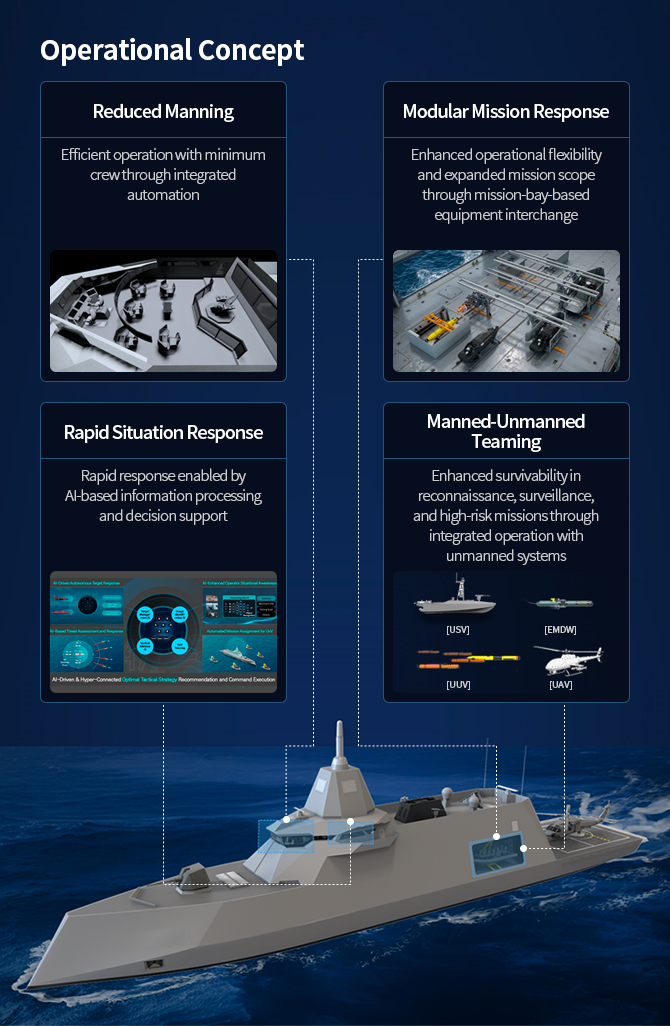

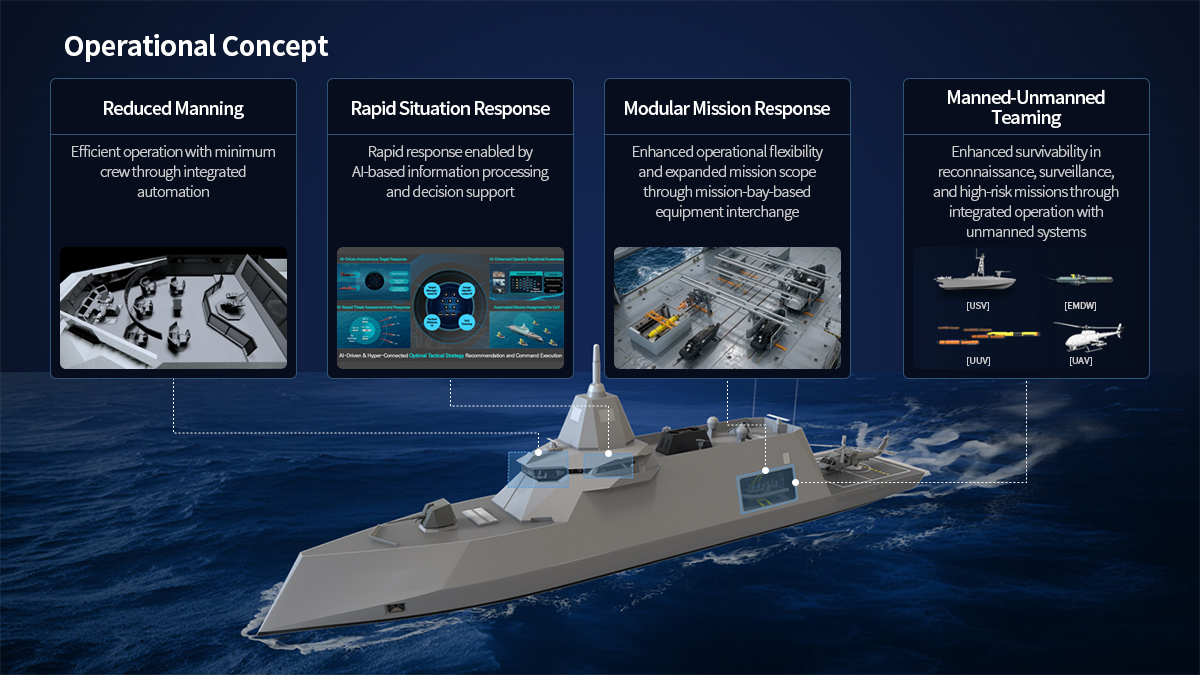

Operational Concept : Reduced Manning - Efficient operation with minimum crew through integrated automation / Rapid Situation Response - Rapid response enabled by AI-based information processing and decision support / Modular Mission Response - Enhanced operational flexibility and expanded mission scope through mission-bay-based equipment interchange / Manned-Unmanned Teaming - Enhanced survivability in reconnaissance, surveillance, and high-risk missions through integrated operation with unmanned systems
Operational Concept : Reduced Manning - Efficient operation with minimum crew through integrated automation / Rapid Situation Response - Rapid response enabled by AI-based information processing and decision support / Modular Mission Response - Enhanced operational flexibility and expanded mission scope through mission-bay-based equipment interchange / Manned-Unmanned Teaming - Enhanced survivability in reconnaissance, surveillance, and high-risk missions through integrated operation with unmanned systems

PRODUCTS

  • HSC-2000
    2,000-ton-class
    Next-Generation OPV

    Read more

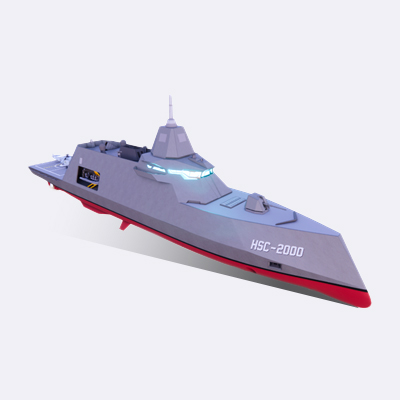

    HSC-2000
    2,000-ton-class Next-Generation OPV

    2,000-ton-class Next-Generation OPV
    AI-Enabled, Software-Centric Next-Generation Smart Naval Vessel
    • Optimized crew operation through a cockpit-type integrated bridge and integrated command center
    • Secures flexibility and scalability through modular design to respond to future battlespaces
    Type OPV Displacement 2,280 tons
    LOA 94.0m Max. Speed 24k nots
    Beam 15m Range 5,000 NM
    (at 15 knots)
    Draft 3.95m Crew 34 (+16 persons)

  • HSC-100
    100-ton-class
    Smart Missile
    Fast Craft

    Read more

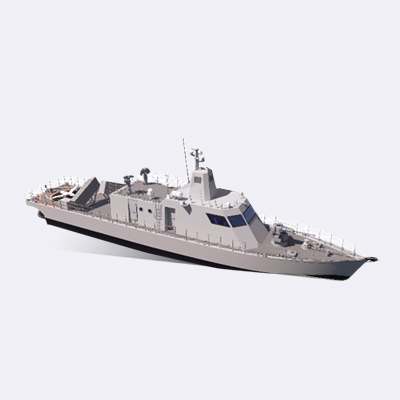

    HSC-100
    100-ton-class Smart Missile Fast Craft

    100-ton-class Smart Missile Fast Craft
    Next-Generation Fast Craft with an Applied Smart Combat System
    • Smart missile fast craft equipped with an ASEA radar
    • Rapid situational awareness and response capability based on an integrated combat system
    • Equipped with wide-area operational capability utilizing VTOL UAV
    Type FAIC-M Displacement 100 tons
    LOA 34.0m Max. Speed 40 knots
    Beam 6.8m Range 1,000 NM
    (at 15 knots)
    Draft 1.4m Crew 15 persons

  • HSC-500
    500-ton-class
    Next-Generation
    Patrol Vessel

    Read more

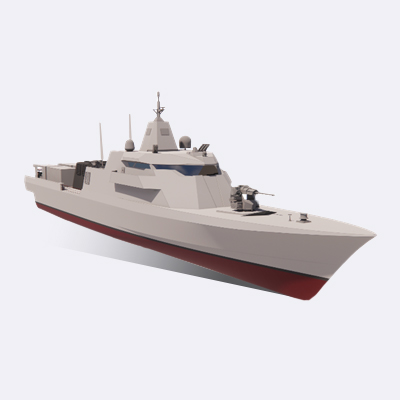

    HSC-500
    500-ton-class Next-Generation Patrol Vessel

    500-ton-class Next-Generation Patrol Vessel
    Next-Generation Patrol Vessel with an Applied Integrated Combat System
    • A 500-ton-class platform capable of performing diverse missions through an integrated combat system and AI-based automation
    • An extended Smart Battleship model with enhanced mission flexibility through a modular mission space and manned-unmanned system integration
    Type Patrol Vessel Displacement 500 tons
    LOA 57.0m Max. Speed 25 knots
    Beam 8.8m Range 2,000 NM
    (at 15 knots)
    Draft 2.3m Crew 26 (+2 persons)
